Idealpos Atlas

15.6" widescreen with a slim body and ergonomic design.

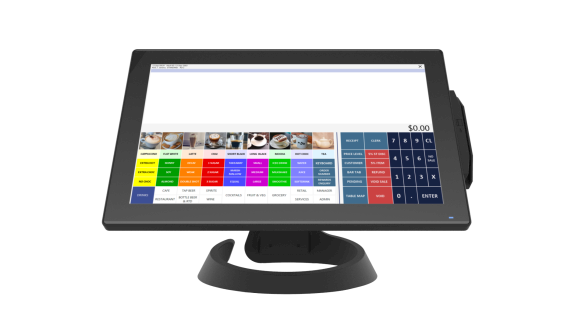

Idealpos Atlas

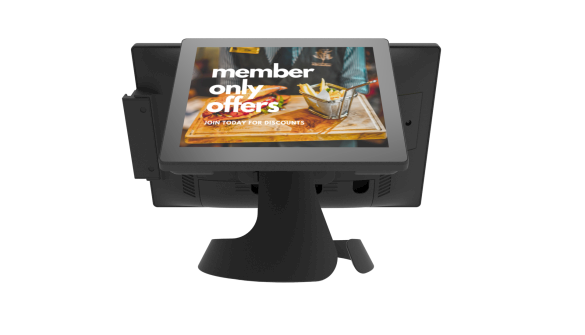

Idealpos Atlas

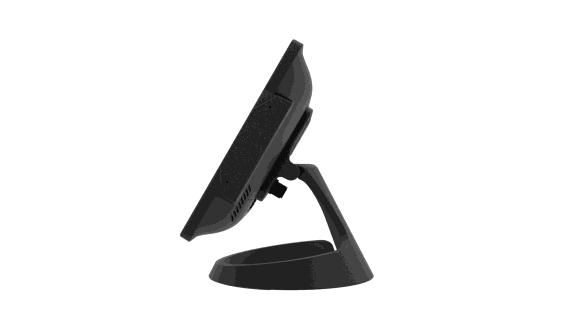

Idealpos Atlas

Key Features

  • IP65 Spill Proof
  • Intel CPU
  • Fanless
  • Powered Peripheral Support
  • VESA Mount

Technical Specifications

Processor Intel® Core™ i5-7300U/6300U Processor
Intel® Core™ i3-7100U/6100U Processor
Intel® Celeron® Processor 3955U
Intel® Celeron® 3965U
System Memory DDR4 4GB, 8GB, 16GB
LCD Size 15.6"
Brightness 300cd/m2
Resolution 1366 x 768 (220 nits) or
1920 x 1080 (300 nits)
Touch PCAP (True Flat Projected Capacitive Technology)
Storage HDD/SSD M.2 PCIe Gen3.0 x2 SSD: 128G/256G
LAN Port/USB Port 2 x LAN (IEEE 802.3 10/100/1000 Mbps Ethernet, RJ45) 4 x USB3.0 (USB3.0/2.0)
DC Input 1 x DC + 12V input
Speaker 1 x Speaker 3W
Power External power adapter, 60W/12V (Lock type)
COM Port 2 x Serial ports, RS232 (RJ45), 0V/5V/12V selection by BIOS (COM1, COM2)
Cash Drawer 1 x RJ11 port supports 2 cash drawers with 24V/12V by jumper setting
OS Windows 10 IoT LTSB (64 bit)
Dimension (W x H x D mm) 392mm x 321mm x 201mm
Environment Operating: 20% - 85% RH non condensing
Storage: 20% - 85% RH non condensing
Power Adapter AC-In 100~240V/DC-Out 12V, 90W
Compliance Certifications CE, FCC Class A


Peripheral Encryption-capable MSR, EMV reader, Bio reader, NFC, iButton, camera, 2D BCR, VFD
Guest Facing Display 10.1", 11.6", 15" Guest Facing Display
Display Support 3 Independent Displays (Main Display + VGA + HDMI)
