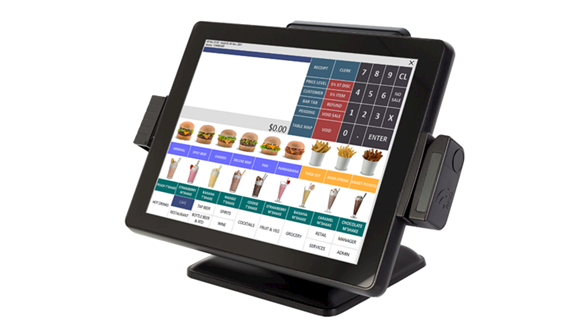

Idealpos i15 J1900 Terminal

It is our honour to present the already popular, i15 J1900 POS System, upgraded to meet the demands of the modern retail and restaurant POS software. The i15 is by far the most popular due to its design and quality as a point of sale terminal.

Download a brochure

Idealpos i15 J1900 Terminal
Idealpos i15 J1900 Terminal
Idealpos i15 J1900 Terminal
  • Intel® Bay Trail J1900 Quad Core CPU
  • All-in-One Fanless POS System
  • 15" Zero-Bezel with PCAP Touch
  • Die-Cast Aluminium Housing with IP66 Certification
  • Flexible architectures for Peripherals as Magnetic Card Reader, Customer Display, RFID and 2D Scanner

Designed to Complement

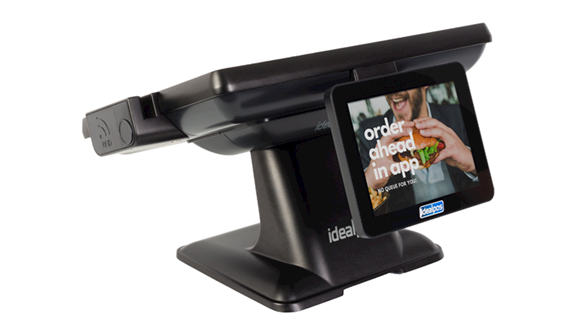

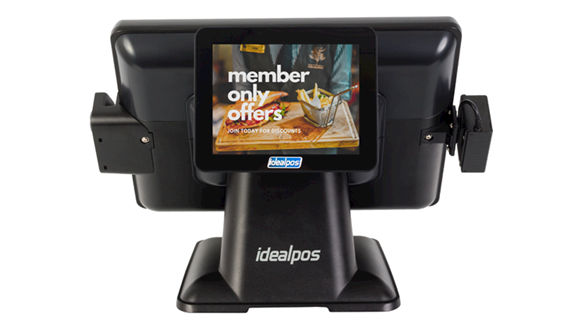

Idealpos i15 is accompanied by an optional second display for the customer, available in 7" and 10.1". Other options include Magnetic Card Reader, RFID Clerk Reader and 2 Cash Drawer Outputs, all consistent with the familiar style of the previous generation of the Idealpos 115 Series.

Ease of Maintenance

Thanks to the modularized design with eco-friendly die-cast aluminium, its efficient thermal ventilation structure keeps Idealpos i15  reliable and faster. Idealpos i15 fulfils the growing need for high-speed hospitality and retail applications, to ensure your business operates smoothly, allowing you to run your business your way.

Integrated Barcode Scanner

The integrated 2D barcode scanner reads both 1D and 2D barcodes from barcodes, coupons and QR codes. It even scans 2D QR codes from smartphone devices.

Stainless Steel Pole

The Idealpos i15 can be mounted on any VESA Pole or wall mount for customised installations. Mounted on a Stainless Steel Pole, the Idealpos i15 will complement the most stylish and sophisticated venues.

Material Mastered

With innovative expertise in PCT touch technology and cutting-edge Intel processors, the new Idealpos i15 stands in a class of its own. With an LED TFT LCD, aluminium chassis, multi-touch and integrative techniques, Idealpos i15 effectively combines a streamlined, classical design with advanced technology to satisfy the growing demands of the hospitality and retail industry.

More Information...

Please feel free to download a brochure.

Download Brochure

LCD & Touch Panel

Model Number Idealpos i15 J1900
Touch Panel True Flat Projected Capacitive Touch
Display 15" TFT LCD Panel (LED Backlight)
Resolution 1024 x 768 Pixels
Brightness 250nits

System Configuration

Intel® Processor Intel® Bay Trail J1900 Quad Core CPU
Memory 4GB DDR3 SO-DIMM RAM
Storage 60GB 2.5" Solid State Hard Drive
Power Supply 65W External Adapter. Voltage +19VDC 3.42A max.
Operating System Windows® 8.1 Industry Retail Pro Embedded
System Dimensions 370 x 300 x 236mm
System Weight 5.68Kg
VESA Mount VESA 100*100mm compliant
Product Certification CE / FCC / ROHS
Operating Temperature 0° C to 40° C

I/O Port Connectivity

USB Port 4 x USB 2.0, 1 x USB 3.0
Serial Port 2 x RS-232 (RJ48 connecter), 1 x RS
Network LAN 1 x Gigabit Ethernet RJ45
Audio HD Audio, 2W Speakers x 2
VGA Display 1 x DB-15 VGA Port
Cash Drawer 1 x RJ-11 (12v or 24v) Default is 12v.

Optional Peripherals

Magnetic Card Reader 3 Track Serial Interface
RFID Clerk Wristband Reader 125Khz Frequency
MSR/RFID Combo Magnetic Card Reader and RFID Combo
Customer Display 7" or 10.1" LED Customer Display
1D/2D Scanner Integrated 1D/2D Barcode Scanner
